FORMAVUE WINDOWS

FV-600KD

FULLY INTEGRATED. ULTIMATE PERFORMANCE.

Share

Share

FV-600A-KD, FV-600S-KD

AVAILABLE IN HORIZONTAL AND VERTICAL PROFILES

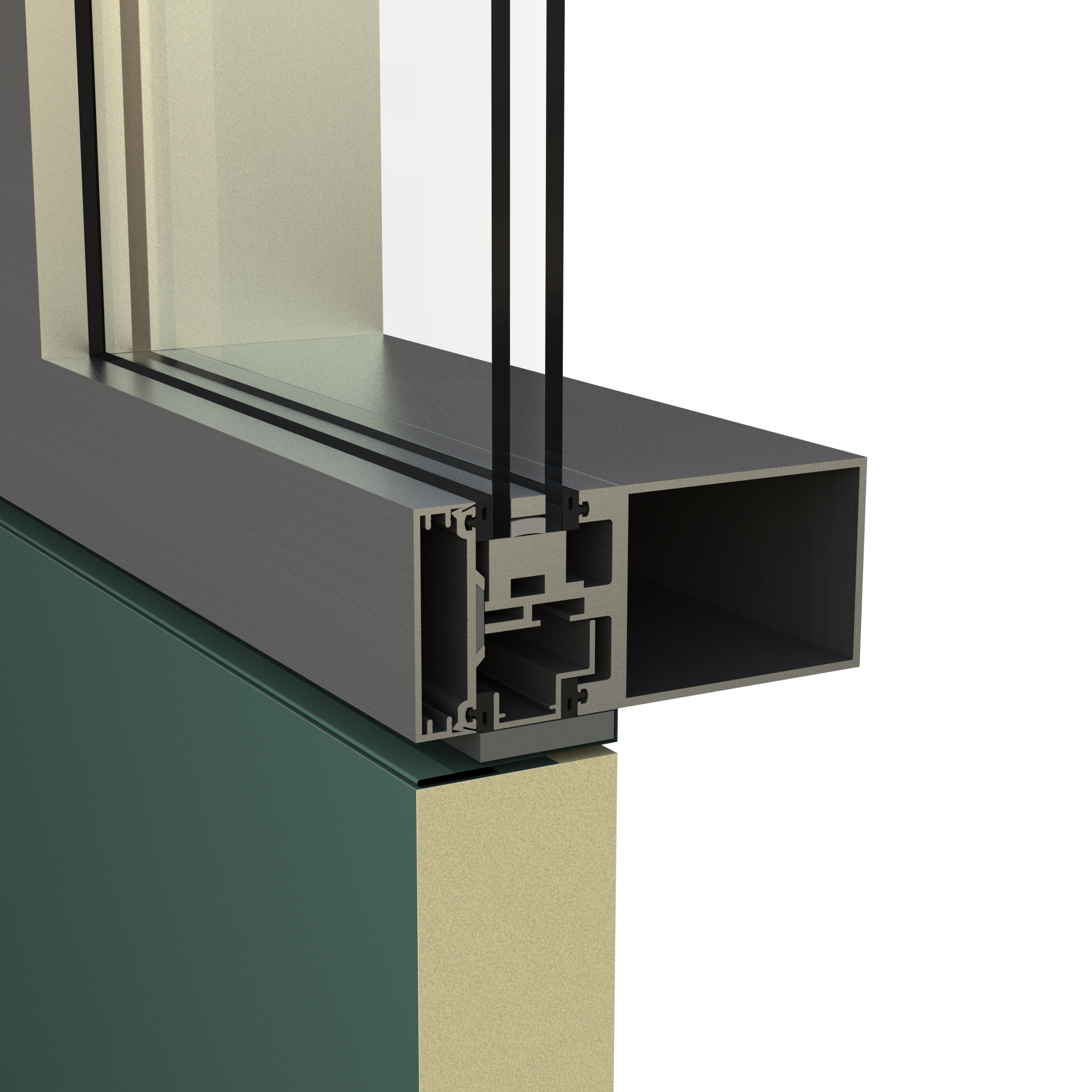

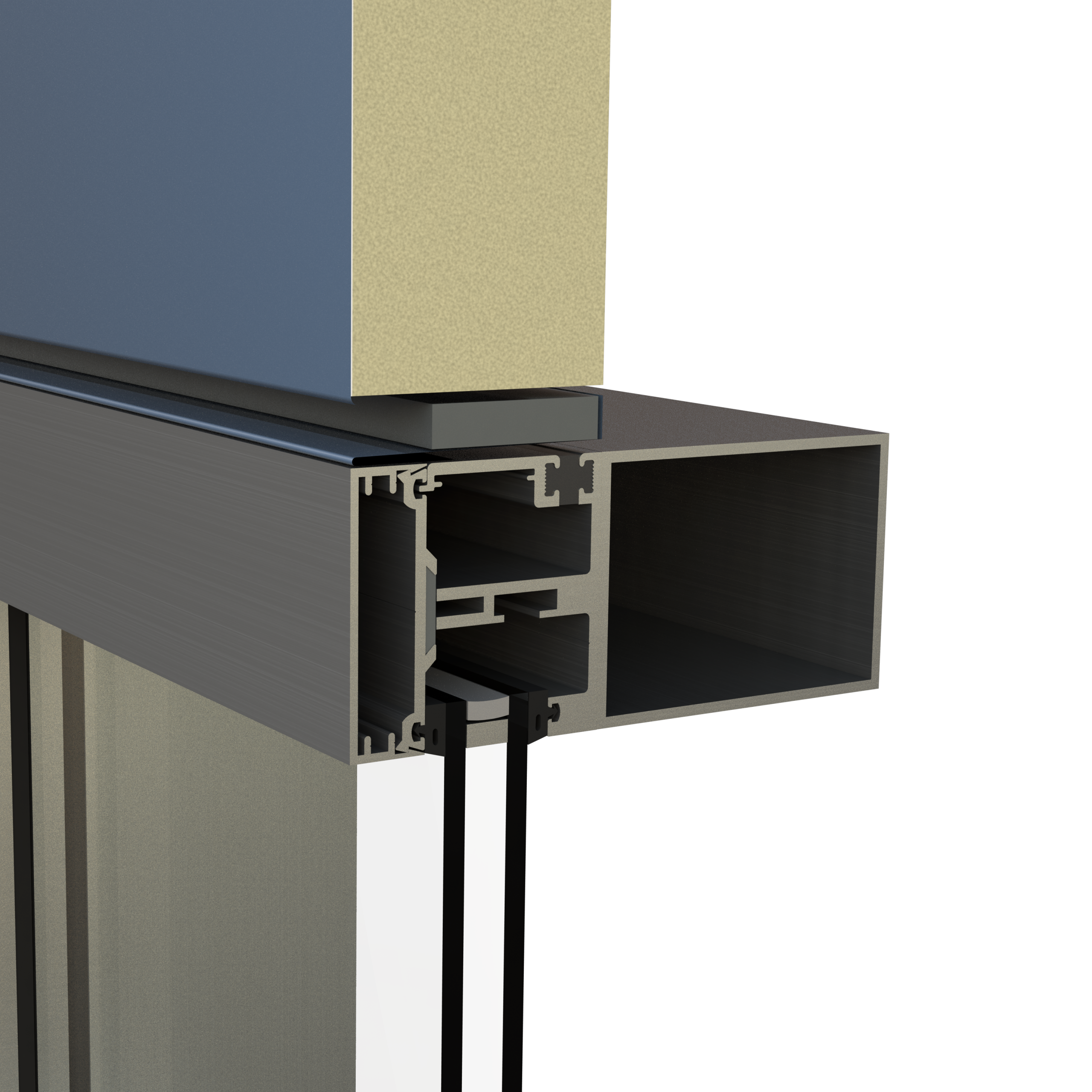

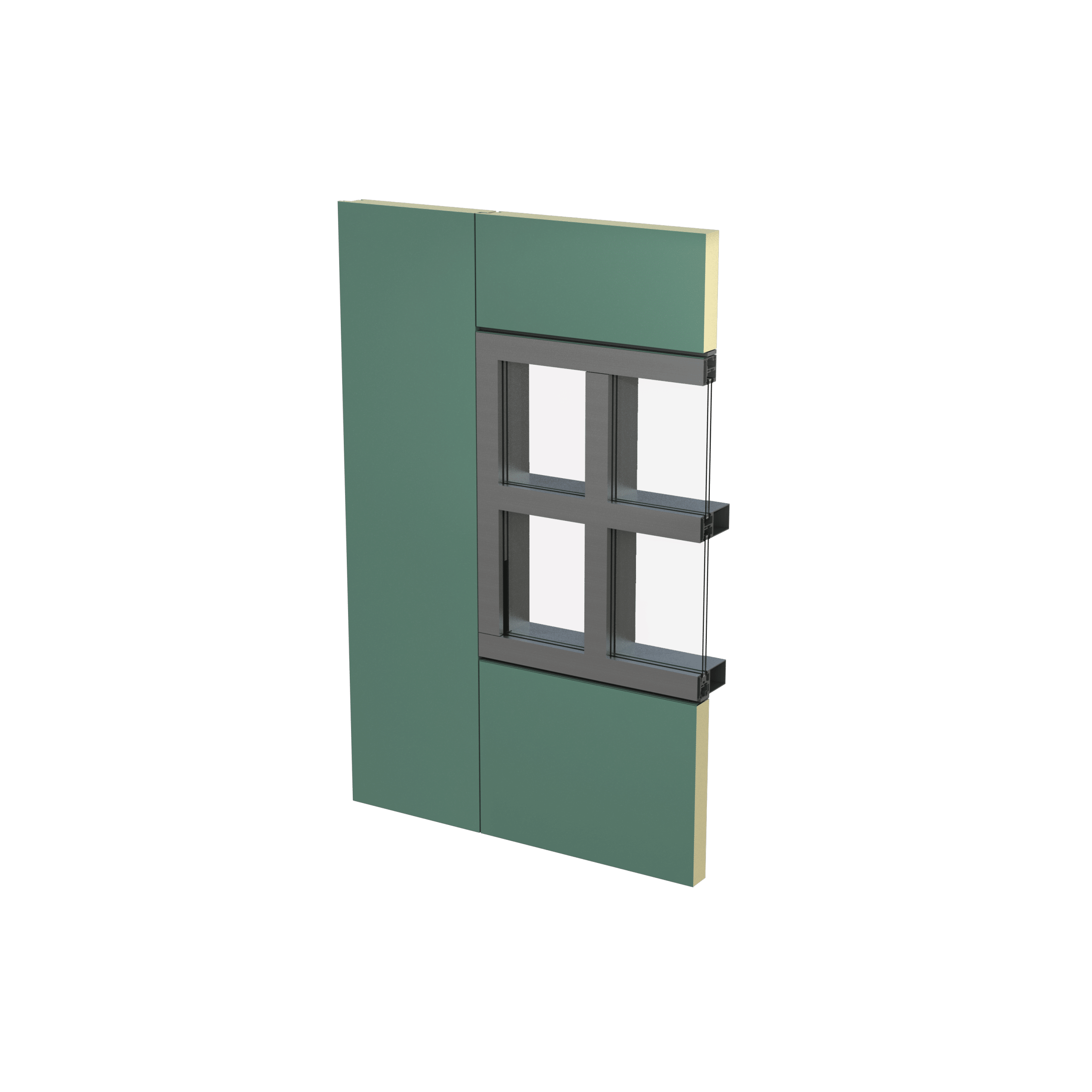

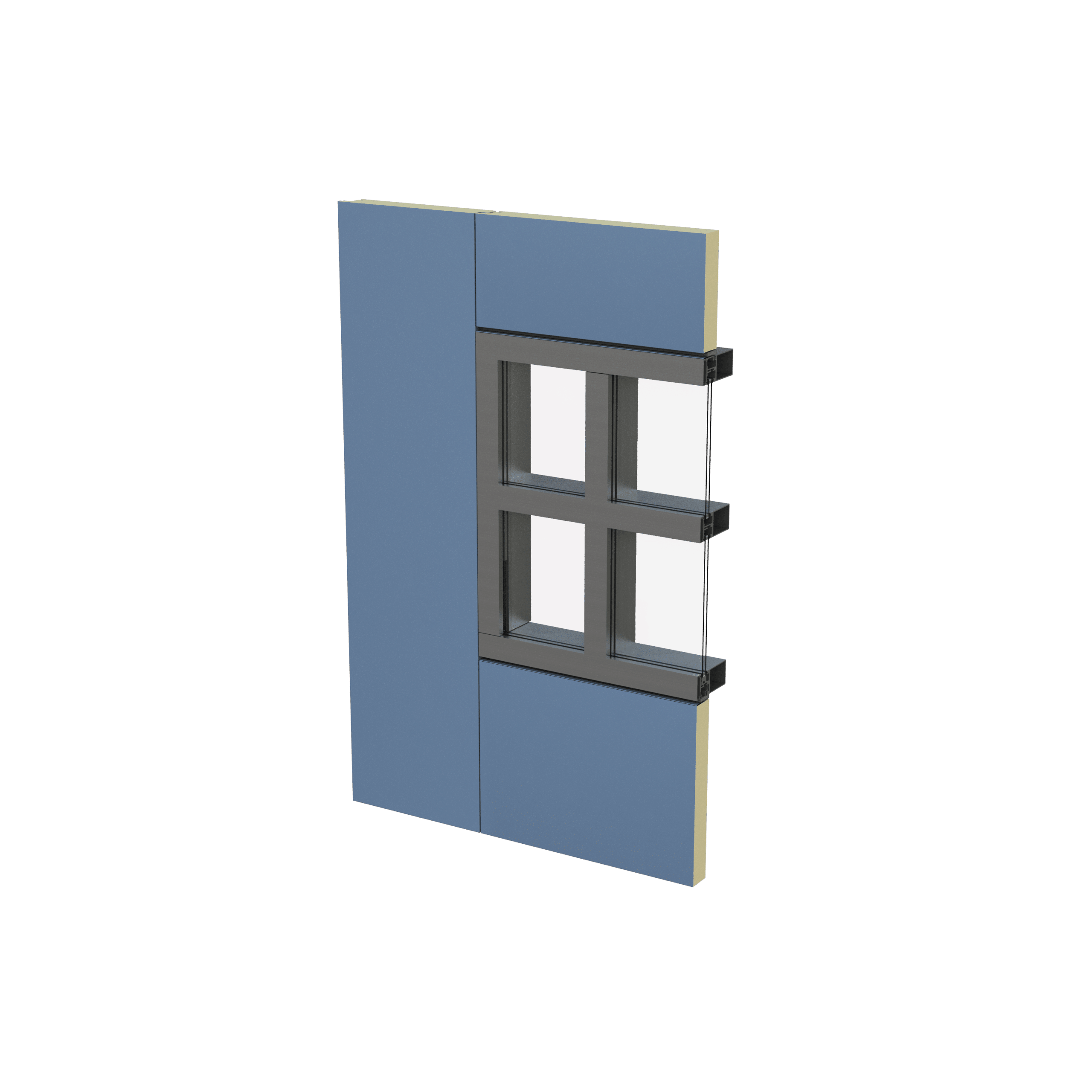

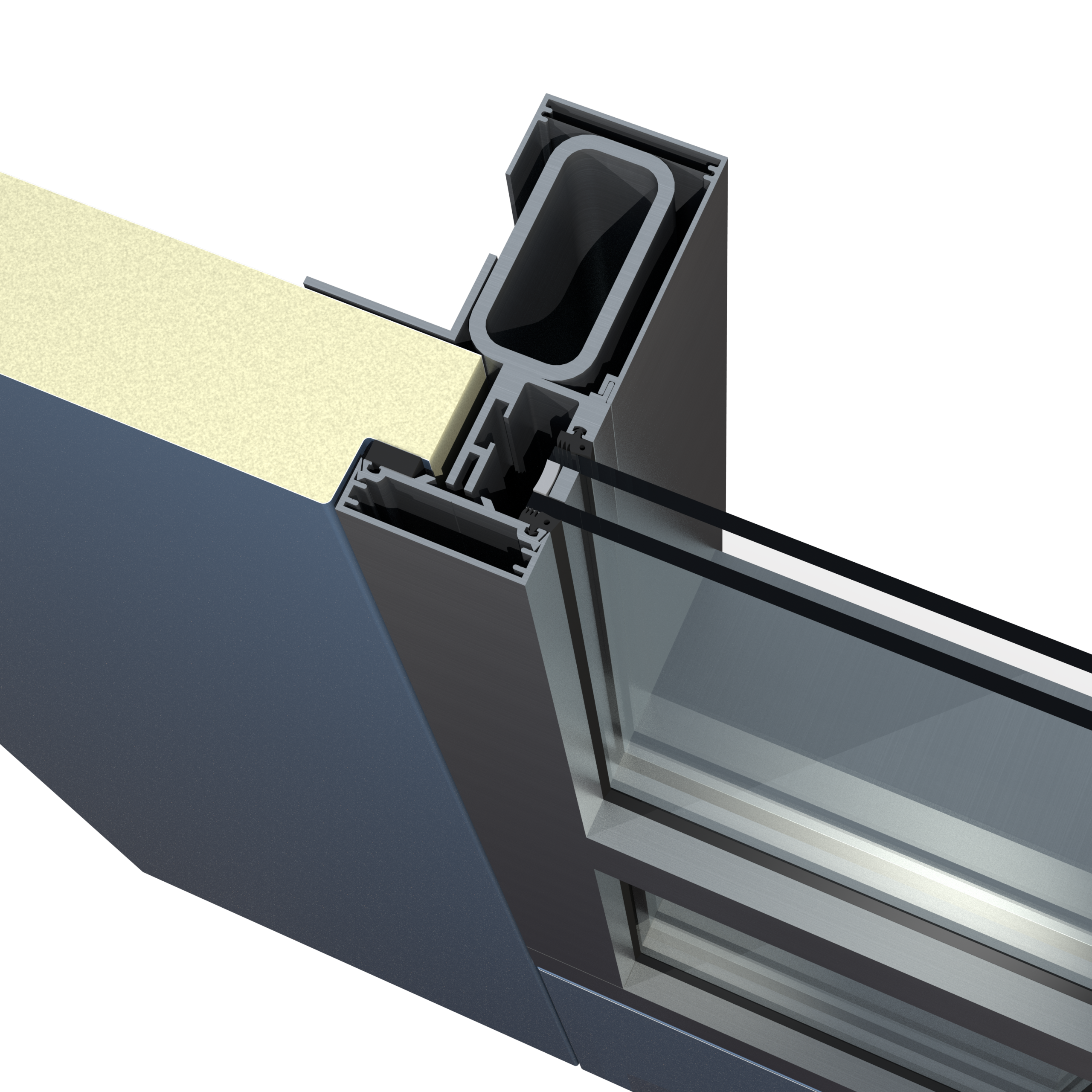

CENTRIA’s Formavue FV-600KD integrated window system is designed to provide a high-performance, thermally efficient window to panel interface with 3”-T thick Formawall Dimension Series insulated metal panels. This window system integrates into the panel joinery with thermally broken extrusions at the window head and sill. FV-600KD windows integrate with horizontal and vertical panels and are available with spandrel or thru-tube supports, for punched or strip window applications. Exterior glazed mullions are interchangeable in the FV-600KD frame and include full mullion (with pressure bar and snap covers) and structural silicone glazed (SSG) mullions.

OPTIONS

FV-600A-KD

FV-600S-KD

SUPPORT STRUCTURE

Steel Studs (A)

Steel Thru-Tubes (S)

FRAME ASSEMBLY

Field Assembled

PANEL INTEGRATION

Horizontal

Vertical

PANEL THICKNESS INTEGRATION

3″-T [76]
